SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders
SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders
SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders
SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders
SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders
SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders

SPIDER Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders

$5,099.00

DESCRIPTION
10/26

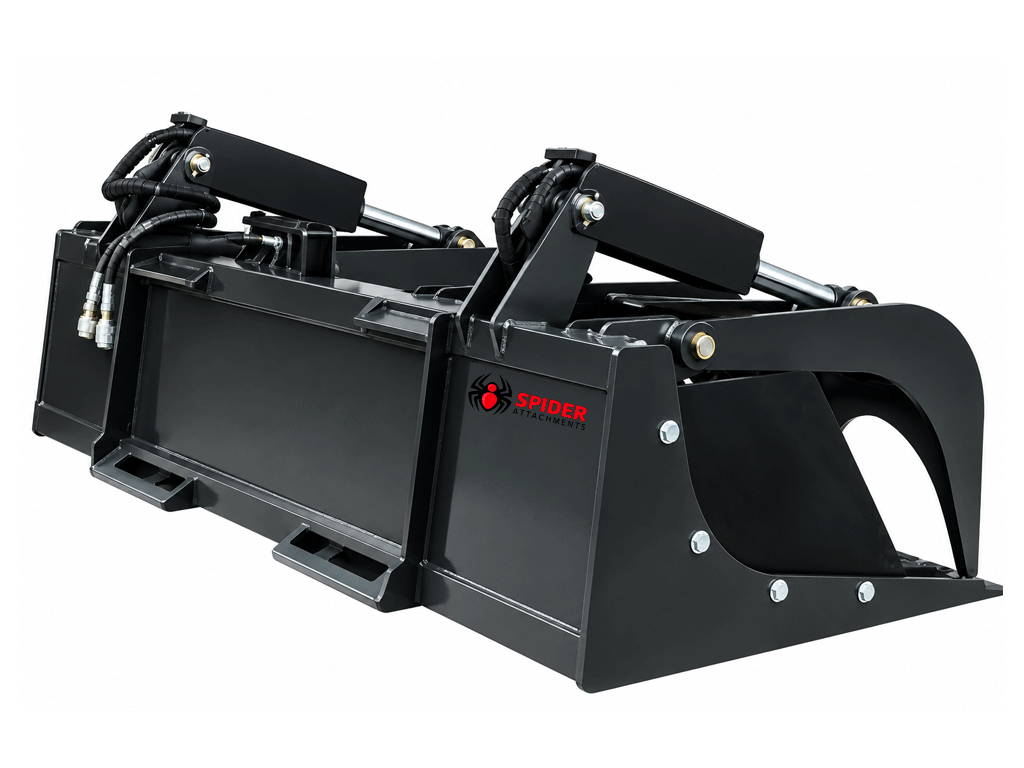

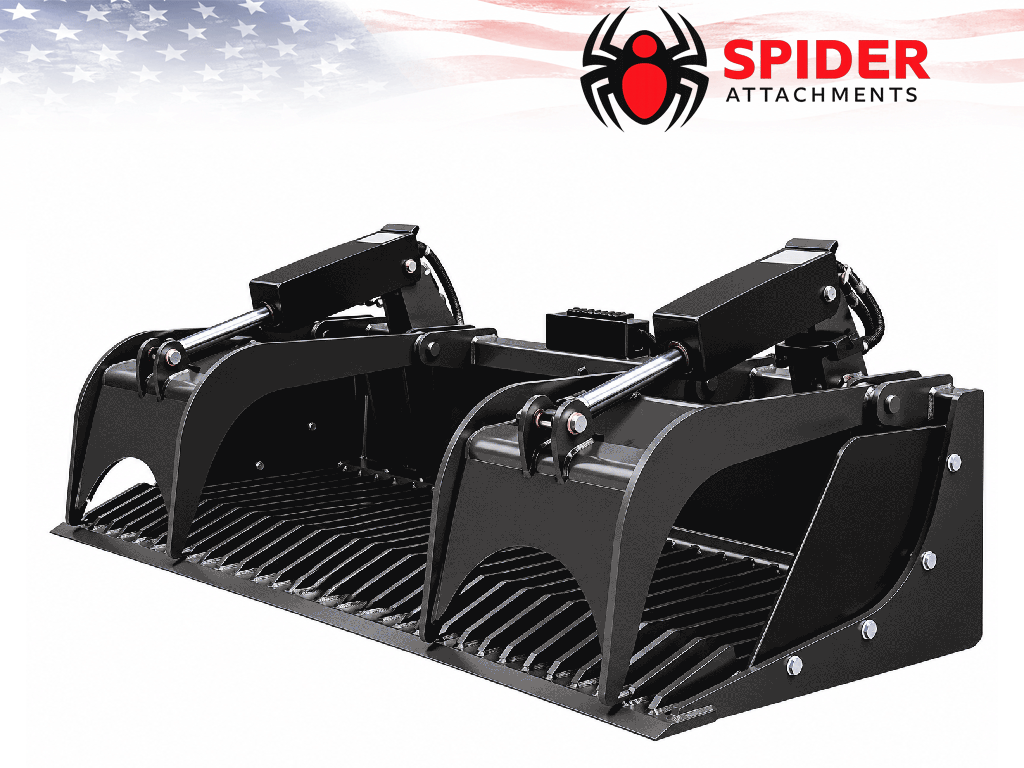

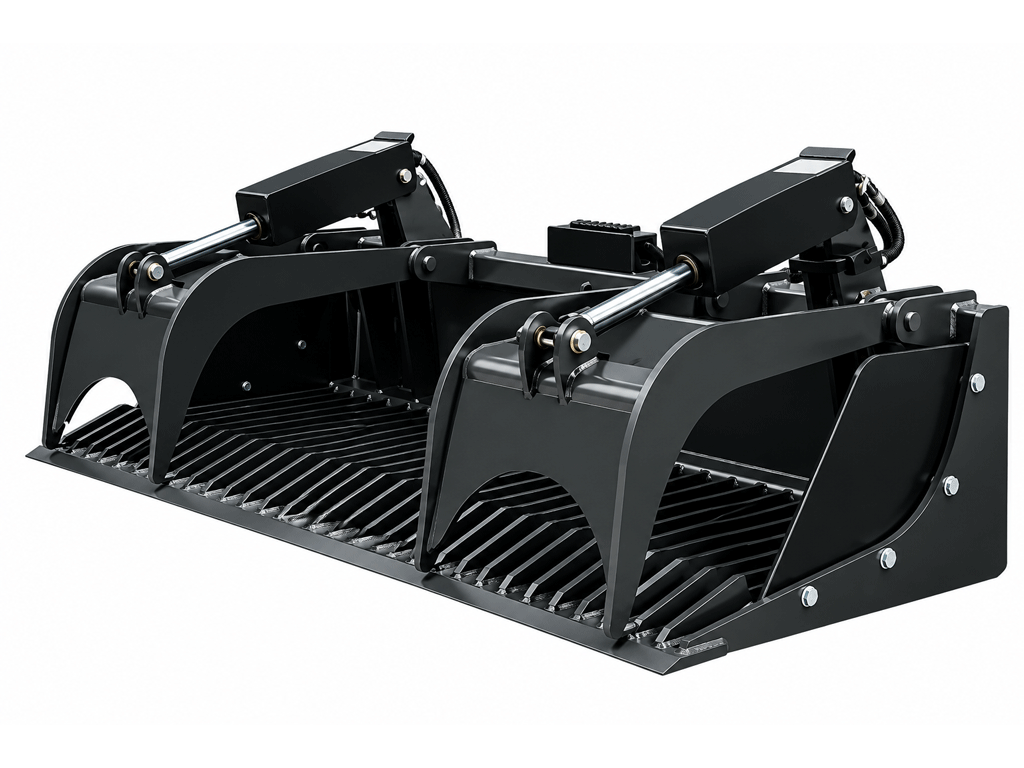

Heavy-Duty Skid Steer Rock Grapple Attachment | 50–75 HP Loaders

Supercharge your land clearing, rock removal, and debris handling with the ultimate Heavy-Duty Skid Steer Rock Grapple Attachment. Engineered specifically for 50–75 HP skid steer loaders and compact track loaders (CTLs), this professional-grade hydraulic grapple combines high-tensile steel construction with dual hydraulic cylinders to conquer the toughest jobsites. Whether you are clearing rocky farmland, prepping construction sites, or managing demolition debris, this commercial skid steer attachment eliminates manual labor and maximizes machine productivity. Available in six heavy-duty widths: 63", 66", 72", 78", 81", and 84". Key Features & Product Benefits
  • Optimized for 50–75 HP Machines: Engineered to match the hydraulic flow and lifting capacities of mid-to-large skid steers and track loaders.
  • Six Commercial Widths Available: Choose from 63", 66", 72", 78", 81", or 84" models for precise machine compatibility.
  • Reinforced Dual Hydraulic Cylinders: Powerful dual 2" x 10" cylinders deliver unyielding clamping force to lock down irregular boulders, logs, and concrete blocks.
  • High-Tensile Steel Tine Construction: Features ultra-durable 1/2-inch thick upper grapple tines and 3/8-inch thick lower tines built for abrasive environments.
  • Efficient Soil Screening Tine Spacing: Engineered with 2-3/8-inch tine spacing to let loose dirt and fine aggregates pass through while retaining large rocks and brush.
  • Premium 3/4" x 6" Cutting Edge: Provides superior durability for ground-level scraping, digging, and scooping operations.
  • Optional Weld-On Teeth Upgrade: Upgrade to a 1" x 8" cutting edge with aggressive weld-on teeth for hardened ground penetration.
  • Optional Hydraulic Cylinder Rod Protection: Add heavy-duty bolt-on steel covers to safeguard exposed cylinder rods from flying rocks and jobsite impacts.
Advanced Dual Hydraulic Grapples for Secure Material Handling Unlike standard skid steer buckets, our hydraulic rock grapple features two independent grapple arms driven by dual 2-inch bore x 10-inch stroke cylinders. This dual-arm design ensures an uncompromising grip on uneven loads, preventing shifting during transport. Performance Advantages:
  • Complete control over large boulders and heavy landscape rocks
  • Secure handling of tangled brush, logs, roots, and demolition debris
  • Maximum operator visibility through the open-frame backbone
  • Accelerated cycle times for loading and unloading dump trailers
Heavy-Duty Applications
  • Rock Removal & Agricultural Field Picking
  • Sift out surface stones and clear rocky farmland efficiently. The specialized tine spacing retains large debris while leaving valuable topsoil behind.
  • Construction Site Prep & Demolition Cleanup
  • Scoop up broken concrete, masonry, rebar, and jobsite waste. The heavy-duty cutting edge resists warping under extreme pressure.
  • Landscaping & Forestry Management

Purchase at our other dealer websites. LEC store

SPECS

Heavy Duty Skid Steer Rock Grapple Specifications

Model / SKU Width Weight HP Rating Hydraulic Cylinders
HDROKG63 63" 750 LB 50–75 HP Dual 2" × 10"
HDROKG66 66" 851 LB 50–75 HP Dual 2" × 10"
HDROKG72 72" 900 LB 50–75 HP Dual 2" × 10"
HDROKG78 78" 941 LB 50–75 HP Dual 2" × 10"
HDROKG81 81" 960 LB 50–75 HP Dual 2" × 10"
HDROKG84 84" 982 LB 50–75 HP Dual 2" × 10"

Additional Specifications – All Models

Specification Details
Top Grapple Tine Thickness 1/2"
Bottom Tine Thickness 3/8"
Tine Spacing 2-3/8"
Standard Cutting Edge 3/4" × 6"
Optional Cutting Edge with Weld-On Teeth 1" × 8"
Optional Weld-On Teeth Available
Optional Cylinder Rod Covers Available
Recommended Machine Horsepower 50–75 HP

Specifications are based on the supplied product information. Verify attachment compatibility, hydraulic requirements, and machine operating capacity before ordering.
